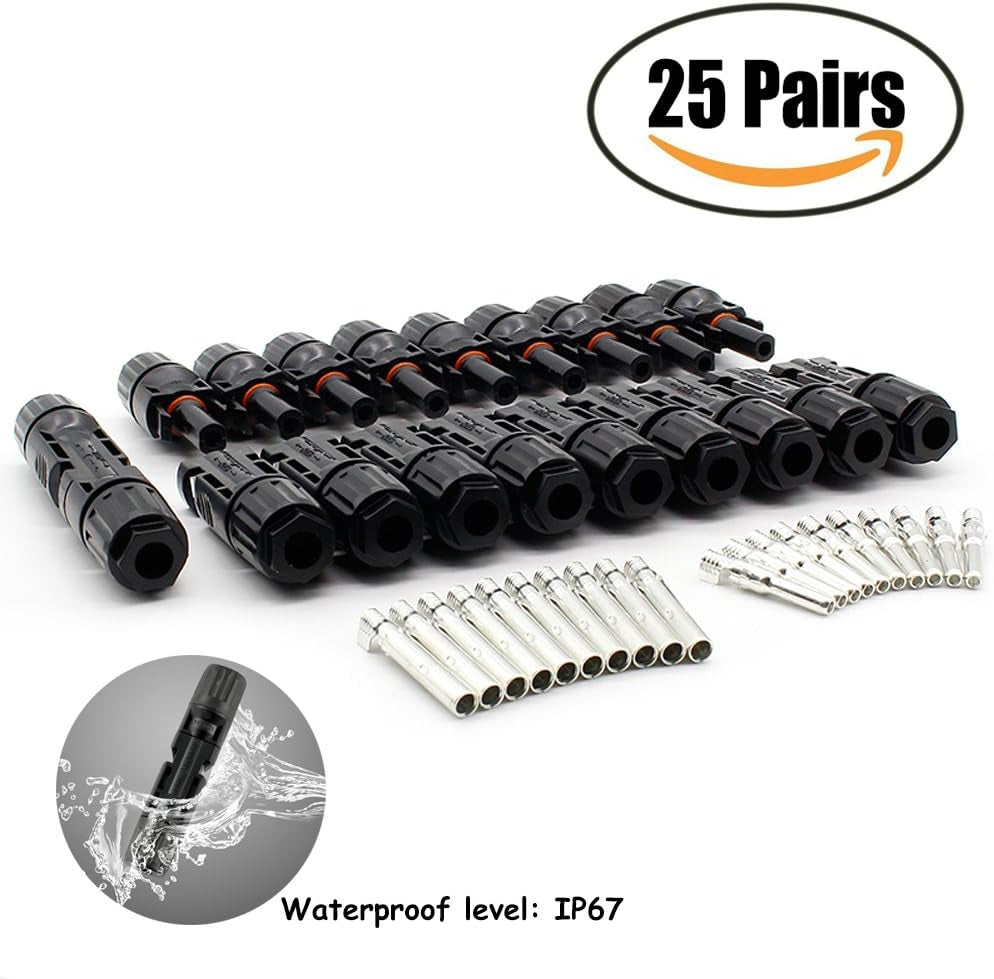

25Pairs / 50PCS Solar Connectors - Male & Female IP67 Waterproof Connector (25 Pairs Solar Connectors)
$34.99
- Solar Connector Conductor pin is tinned Copper: made of PPO + PA material, It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load.
- With excellent aging resistance and UV endurance, it can be used in harsh environment.
- It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.
- Solar Male/Female Connectors, Compatible with different insulation diameters (2.5m㎡--6m㎡/14AWG - 10AWG).
- Package Include: 25Pairs Solar Connectors ( 25PCS Male & 25PCS Female). For any reason you are unsatisfied with our product, just feel free to contact support for exchange or refund. Your Satisfaction is our priority.
Product description
YARACHEL 25Pairs / 50PCS Solar Connectors - Male & Female IP67 Waterproof Solar Connector
This connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.
Features
- Quick & simple assembly processing and simple removal of plugs
- Compatible with different insulation diameters
- Double seal ring, better waterproof

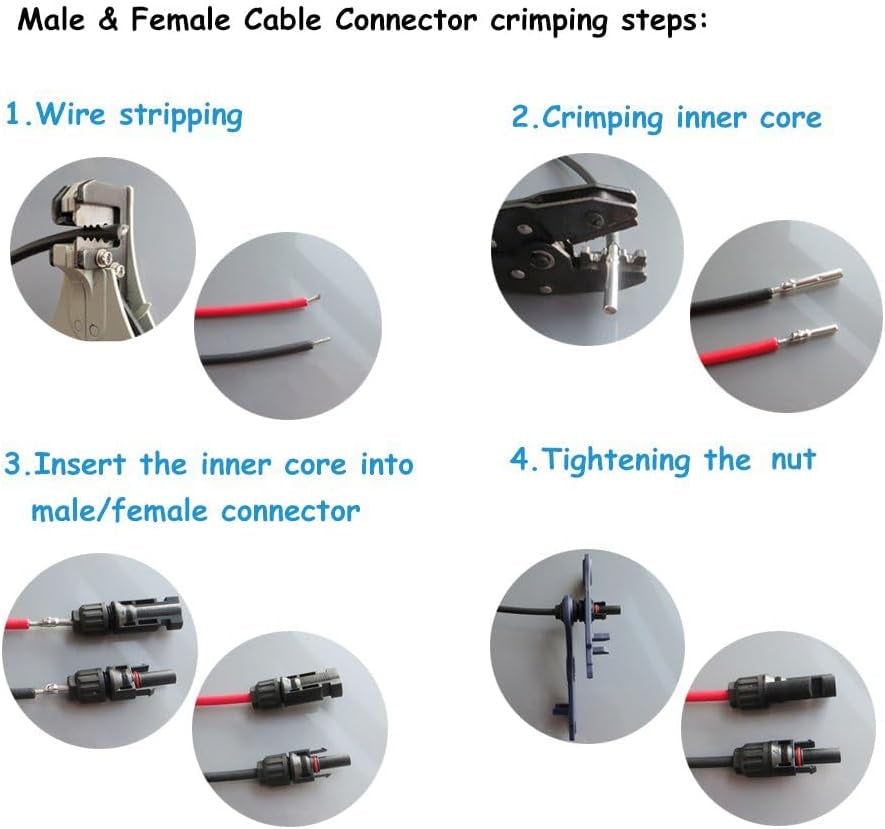

- Connection by the crimping tool
- Insulation Material: Made of PPO + PA material.
Specifications
Maximum working voltage: DC 1000V
Rated Current: 30A
Suitable for: 2.5mm²( AWG14 ), 4mm²( AWG12 ), 6mm²( AWG10 )
Contact resistance: ≤1mmΩ
Pollution degree: 2
Temperature Range: -40 ℃ ~ +125 ℃
Flame class: UL94-V0
Waterproof Class: IP67
Insertion force: ≤50N
Withdrawal force: ≥50N
IP67 waterproof
The waterproof ring ensures that water and dust will not enter the connector during long outdoor use.
The built-in shrink ring tightly adheres to the solar line when tightening the connector, effectively preventing water from seeping in.

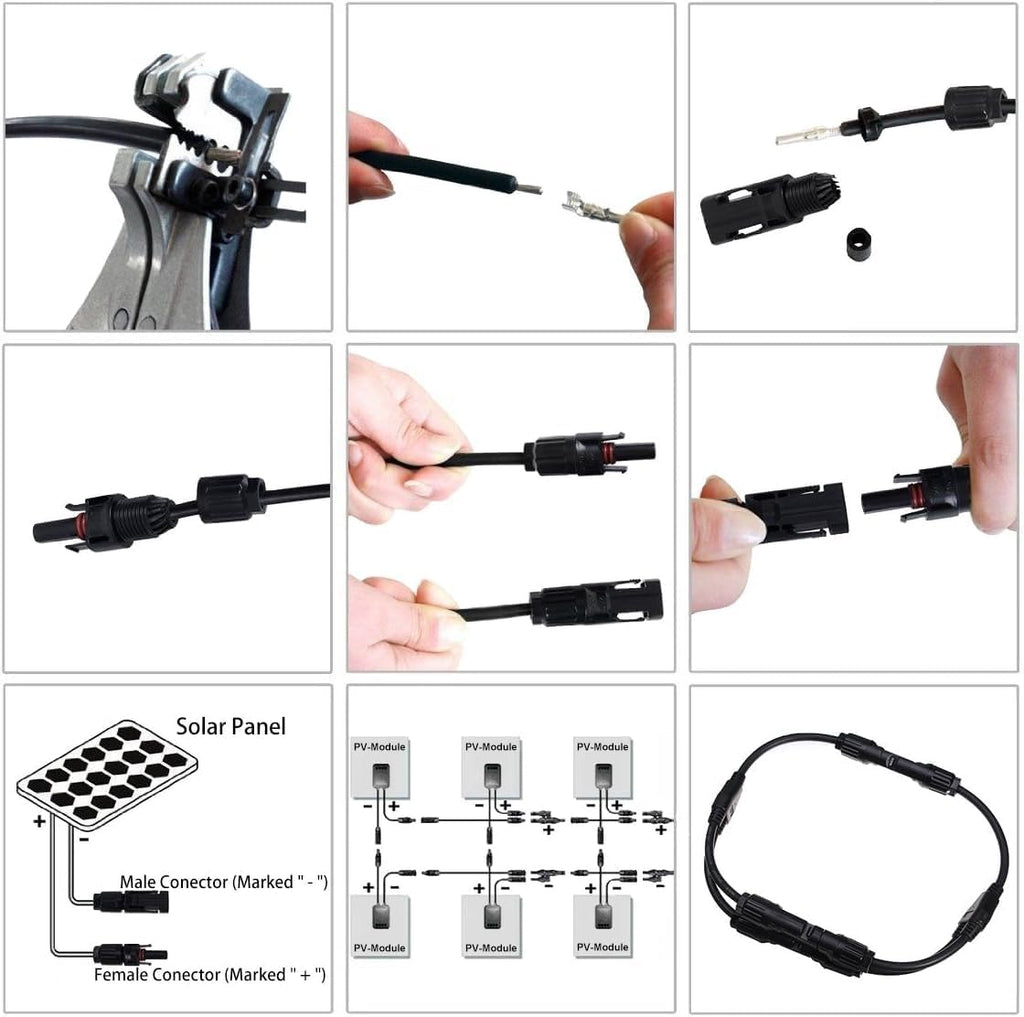

Plug and play
Connection - putting the male and female connectors facing each other and pushing in.
Separation - pressing the two sides of the built-in lock and pulling the male and female connectors.
Fully adapted
25Pairs / 50PCS Solar Connectors
Why would you choose the YARACHEL Solar Connectors?
YARACHEL Cable Connectors are made from high quality PPO materials to ensure the long term durability (compare to the cheap sheet metal pin), PPO materials have advantages that sturdy,impact,corrosion-resistant with a high igniztion point Ensure service life and safety performance. With excellent aging resistance and UV endurance, it can be used in harsh environment.
Package Includes:
- 25 × male solar connectors ( with solar connector pins )
- 25 × female solar connectors (with solar connector pins )
